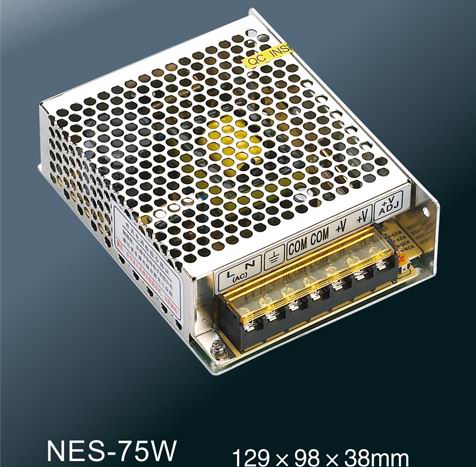

Model

NES-75-5

NES-75-12

NES-75-15

NES-75-24

output

DC voltage

5V

12V

15V

24V

Voltage tolerance

±2%

±1%

±1%

±1%

Rated current

15A

6.3A

5A

3.2A

Current range

0~10A

0~6.3A

0~5A

0~3.2A

Rated power

75W

75.6W

75W

76.8W

Ripple&noise

80mvp-p

100mvp-p

100mvp-p

120mvp-p

DCvoltage ADJ.range

-9%~+10%

±10%

±10%

±10%

input

Voltage range

90~264VAC，125~373VDC

frequency

47~63HZ

AC current

1.5A/115VAC，0.75A/230VAC

efficiency

79%

82%

82%

84%

Inrush current

Cold start current  20A/115VAC，40A/230VAC

Leakage current

< 3.5mA/240VAC

protection

Over load

Rated output power110%~150%  start over load protection

protection type：hiccup mode，auto-recovery after fault condition is removed

over voltage

6.8~8.2V

15.6~17.8V

18.6~20.8V

30.6~33.2V

protection type：hiccup mode，auto-recovery after fault condition is removed

environment

Working temp,humidity

-20℃~+60℃，20%~90%RH

Storagetemp,humidity

-40℃~+85℃，10%~95%RH non-condensing

Withstand vibration

10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes

safety

Withstand voltage

I/P-O/P：3KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC

Fitstandard

Safety standard

Fit UL1012

EMC standard

符合EN55022，CLASSA

others

Dimension

129*98*38mm (L*W*H)

Weight/packing

0.4kg/45pcs/19kg/0.034m3/1.2CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
