Model

FS-50-12

FS-50-15

FS-50-24

FS-50-36

output

DC voltage

12V

15V

24V

36V

Voltage tolerance

±1%

±1%

±1%

±1%

Rated current

4.2A

3.4A

2.1A

1.4

Current range

0~4.2A

0~3.4A

0~2.1A

0~1.4A

Rated power

50.4W

51W

50.4W

50.4W

Ripple&noise

150mvp-p

150mvp-p

150mvp-p

200mvp-p

DCvoltage ADJ.range

±10%

±10%

±10%

±10%

input

Voltage range

170~264VAC，255~373VDC

frequency

47~63HZ

AC current

0.6A/230VAC

efficiency

82%

82%

84%

85%

Inrush current

Cold start current  30A/230VAC

Leakage current

< 3.5mA/240VAC

protection

overload

Rated output power115%~150%  start over load protection

protection type：hiccup mode，auto-recovery after fault condition is removed

-----

-----

-----

environment

Working temp,humidity

-10℃~+60℃，20%~90%RH

Storagetemp,humidity

-20℃~+85℃，10%~95%RH non-condensing

Withstand vibration

10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes

safety

Withstand voltage

I/P-O/P：1.5KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC

Fitstandard

Safety standard

Fit UL1012  IP44

EMC standard

符合EN55022，CLASSA

others

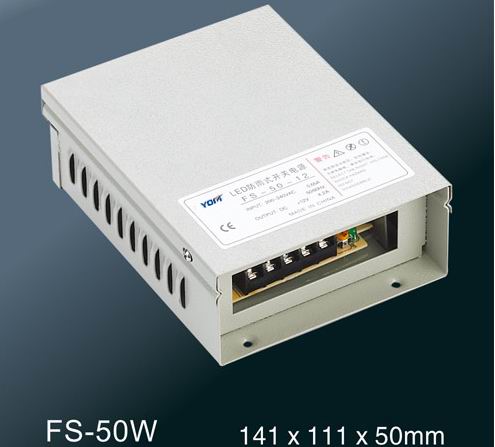

Dimension

141*111*50mm (L*W*H)

Weight/packing

0.68kg/40pcs/28.2kg/0.046m3/1.64CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
