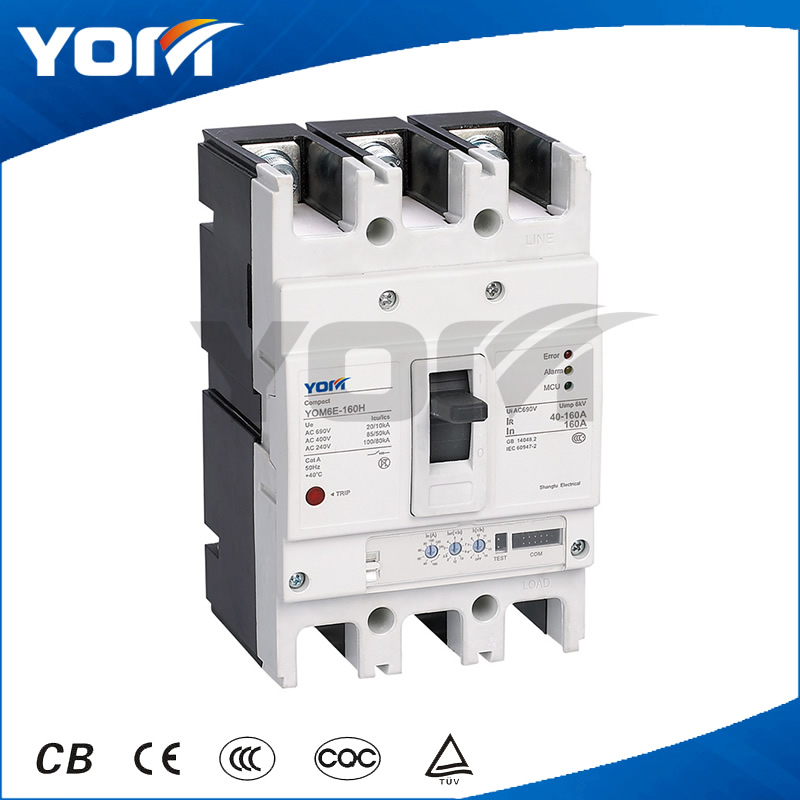

YOM6E Series Moulded-case Circuit Breaker of Intelligent Electronic Adjustable Type

If you have any questions, please contact us!

wilsonzhao@aliyun.com

+86-13968778910

Wilsonzhao365

499070992

Product Details
Return

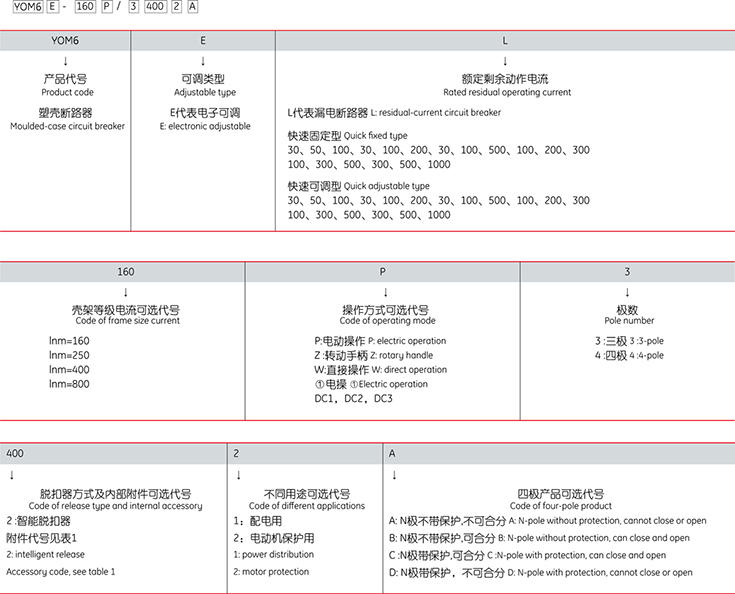

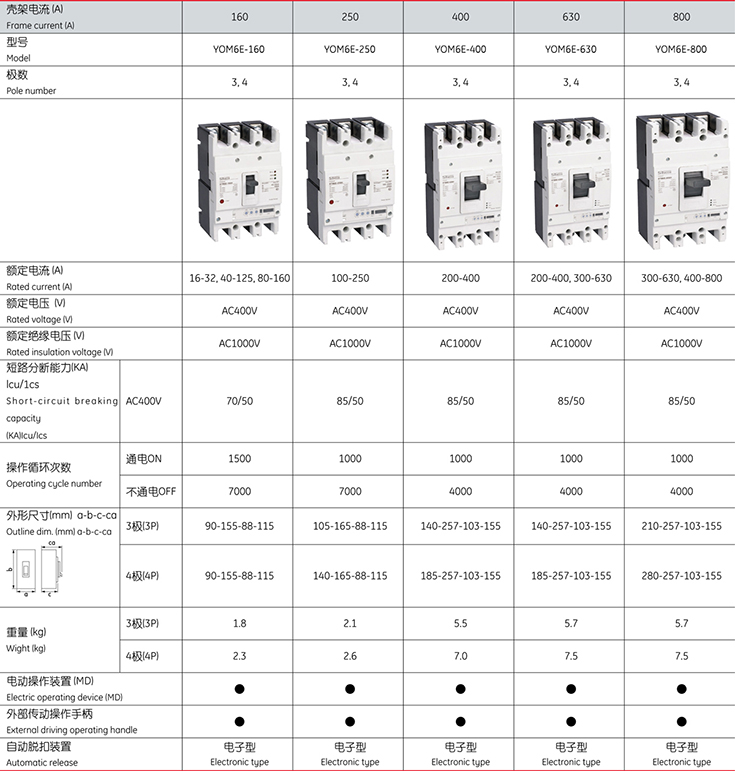

Product overview

YOM6E and YOM6EL series electronic circuit breakers are applicable for low-voltage power systems of AC 50Hz, rated operating voltage up to 1000V and rated operating current from 16A to 800A.

Ambient and installation conditions

◆Altitude up to 2000m;
◆Ambient medium temperature should be within -5℃ to +40℃ (+45℃ for marine products);
◆It can withstand the effect of damp air;
◆It can withstand the effect of salt fog or oil mist;
◆It can withstand the effect of moulds;
◆It can withstand the effect of nuclear radiation;
◆The max inclination is 22.5℃.
◆It still can work reliably when the ship subjects to normal vibration;
◆It can still work reliably if the product subjects to the earthquake (4g).
◆Places where the surrounding medium is free from explosion danger, and far away from gas or conductive dust that would erode the metal or destroy the insulation;
◆Keep away from rain or snow.

Features

◆Circuit breaker can be equipped with undervoltage release, shunt release, auxiliary contacts, alarm contacts, electric operating mechanism, rotary operating handle and other accessories.
◆Circuit breaker has protection functions of overload long delay, short-circuit short delay and short-circuit instantaneous protection, the user can set the required protection characteristics (user only needs to operate the DIP switch for settings of protection function parameters).
◆Circuit breaker has ground fault and thermal analog protection functions, pre-alarm indication over-current indication, load current indication, digital current analysis technology, and it can achieve a higher level of protection.
◆YOM6EL series is circuit breaker with residual current protection function.

Panel and function description

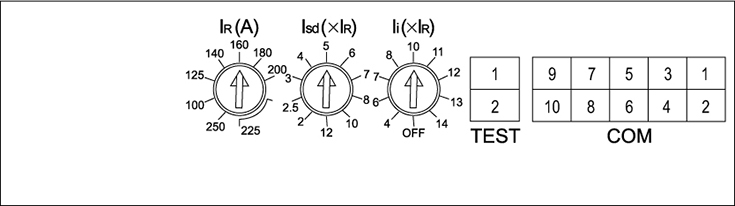

Intelligent release panel

Tripping test port (TEST)：
1Tripping test input DC12V(+)
2 Tripping test input DC12V(-)
Panel adjuYOMent knob as follows in turn: IR(A) Isd(x IR) Ii(x IR)

◆IR: Overload long delay tripping setting current; Isd:
◆Short-circuit short delay tripping setting current;
◆Ii: Short-circuit instantaneous tripping setting current;
The rest parameters are set by factory default, or set by remote communication, as follows:
◆tR: Overload long delay setting time, factory default: 60s;
◆tsd: Short-circuit short delay setting time, factory default: 0.1s;
◆Ip: Overload pre-alarm setting current, factory default: 0.85*IR;

Intelligent communication port (COM):
2：电源输入DC24V(-) 5：485B-
1：Power supply input DC24V(+)
2：Power supply input DC24V(-)
3：485A+
4：485A+
5：485B-
6：485B-
7：Closing and opening common terminal of electric operating mechanism
8：Closing and opening common terminal of electric operating mechanism
9：Opening of electric operating mechanism
10：Closing of electric operating mechanism

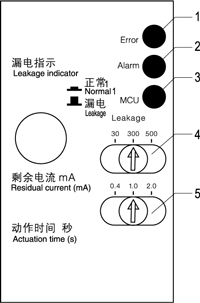

Panel with residual current protection

1：Setting current In overload indicator, the red light will go on when the operation current is ≥ 105% In
2：Pre-alarm current Ip indicator, the yellow light starts flashing when operation current is ≥ Ipx90%
3：When operation current is ≥ 60% xln setting current, the green light will go on
4： The code switch for residual current setting
5：The code switch for leakage action time setting
